SOLUTION & SERVICES

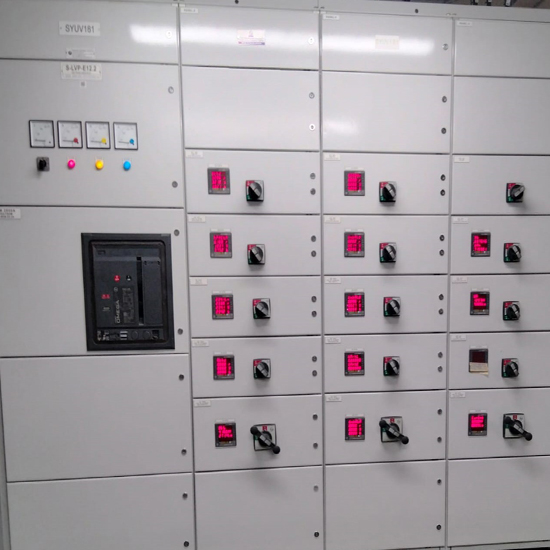

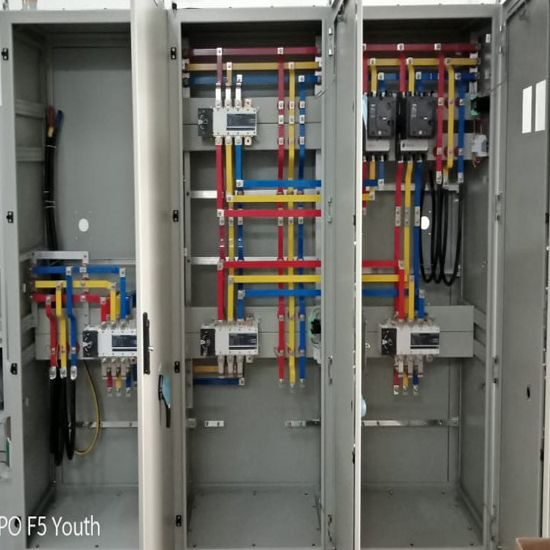

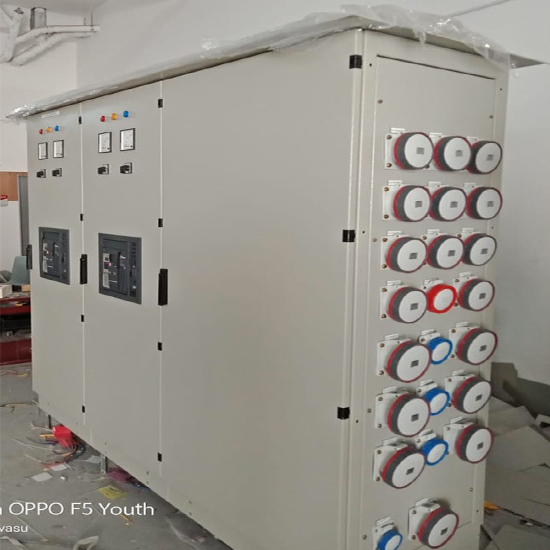

Main and Distribution Boards
The following features are included in our MDB panel MDB assemblies as per IEC 61439-1
All panels are upto IP-54/55 type of protection. Form-2, 4 type 2 - 6 form of construction (can be customized as per requirement). Rated current up to 6000A. Rated up to 690VAC, 50/60Hz. Protection against phase failure. Protection against overload, short-circuit, earth leakage. Adequate space inside the enclosure for cabling. Voltmeter, ammeter, power factor meter/multi-function meters are provided

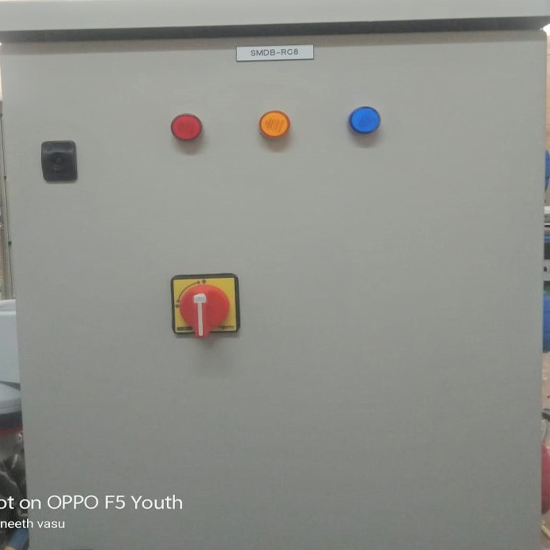

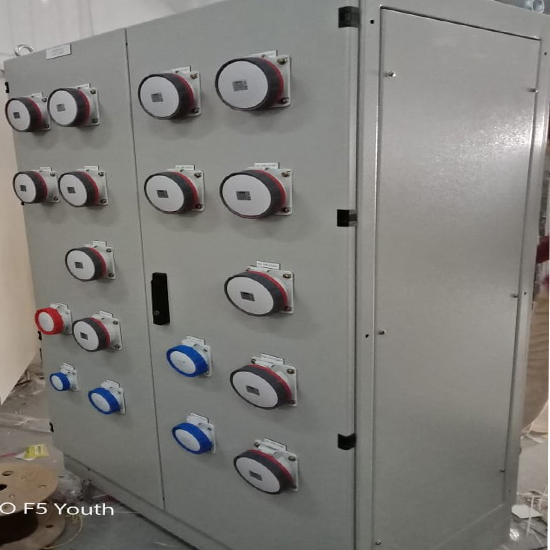

Sub-Main and Distribution Boards
The following features are included in our SMDB panel SMDB assemblies as per IEC 61439-1
All panels are with IP-65 type of protection. Form-2 type of construction (can be customized as per requirement). Protection against phase failure. Rated upto 690VAC, 50/60Hz. Protection against overload, short-circuit, earth leakage. Adequate space inside the enclosure for cabling. Voltmeter, ammeter, power factor meter/multi-function meters are provided (if needed).

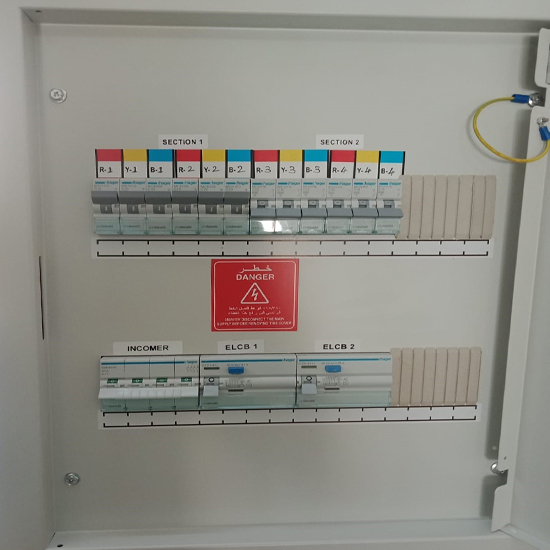

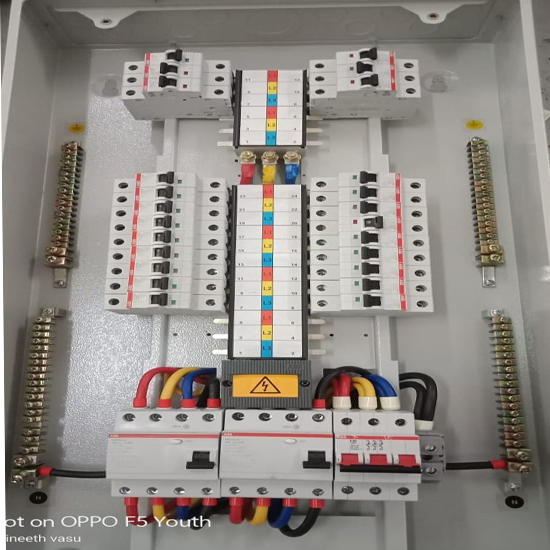

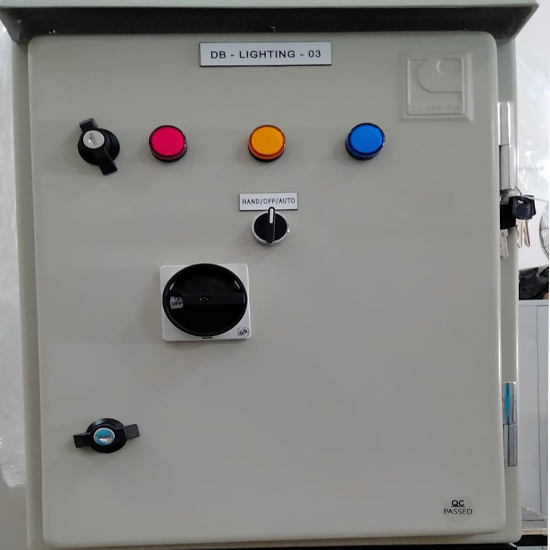

Final Distribution Boards
The following features are included in our Final Distribution Board
All panels are with IP-41 / 65 type of protection. (can be customized as per requirement) Complies with IEC 61439-3 standards. Rated up to 690VAC, 50/60Hz. Made of high quality electro-galvanized steel sheet of thickness upto 1.2mm. Spacious enclosures facilitating ease of wiring and efficient heat dissipation. Available in Flush and Surface mounting types.

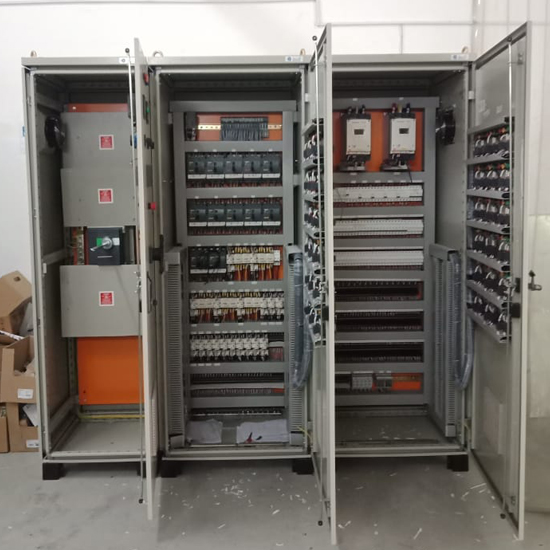

Motor Control Centers
The following features are included in our MCC panel
All panels are with IP- 42 / 65 type of protection. Form-2, 4 type 2 - 6 (can be customized as per requirement). Rated up to 690VAC, 50/60Hz. Emergency stop provision remote/manually operated. Provision for automatic operation (PLC,BMS/DDC). Protection against overload, short-circuit, earth leakage and fire. Adequate space inside the enclosure for cabling

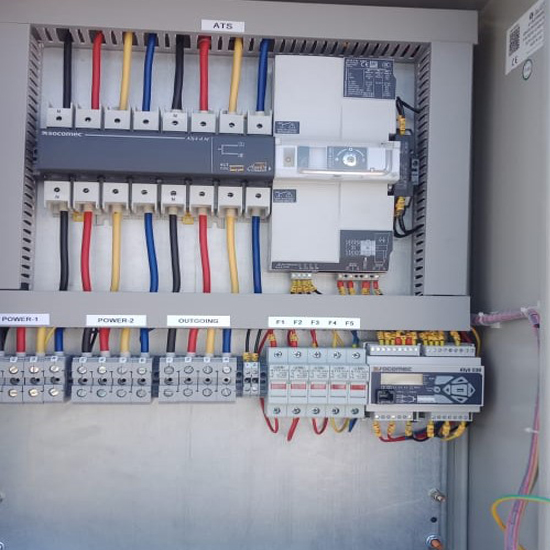

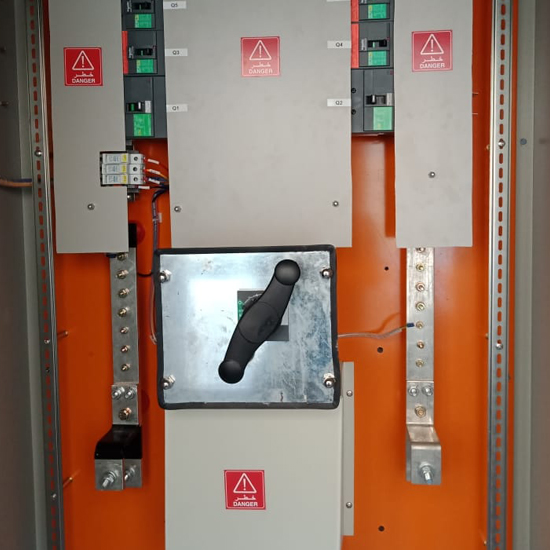

Auto-change over and AMF Panels
The following features are included in our ATS/AMF panel
All panels are with IP- 42 / 65 type of protection. Form-2, 4 type 2 - 6 (can be customized as per requirement). Rated up to 690VAC, 50/60Hz. A source-changeover system comprises circuit breakers, switch-disconnectors or contactors Switching from a main power source to a replacement source can be performed either manually or automatically Control from remote : through BMS, SCADA, etc Adequate space inside the enclosure for cabling

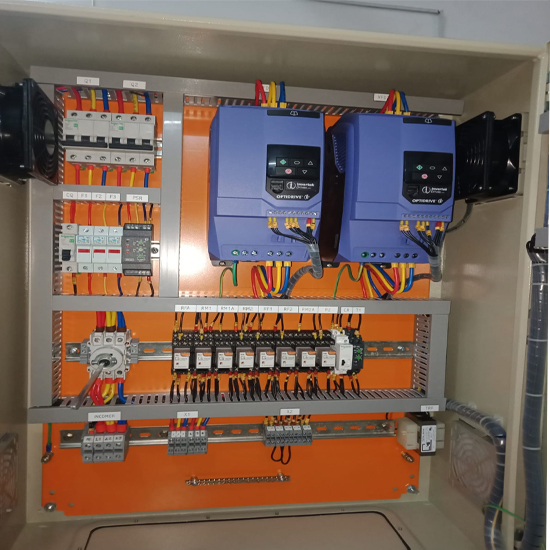

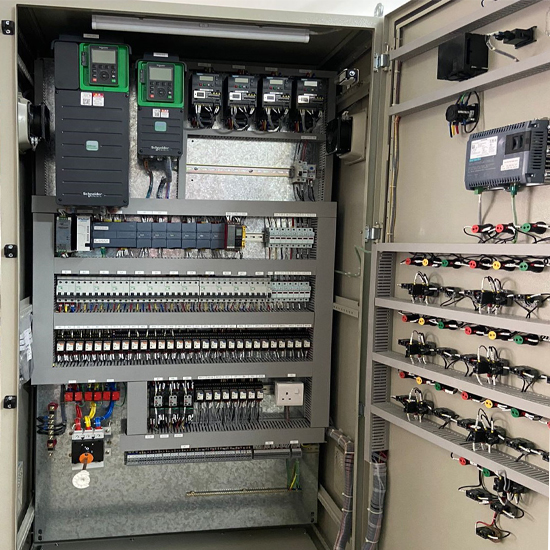

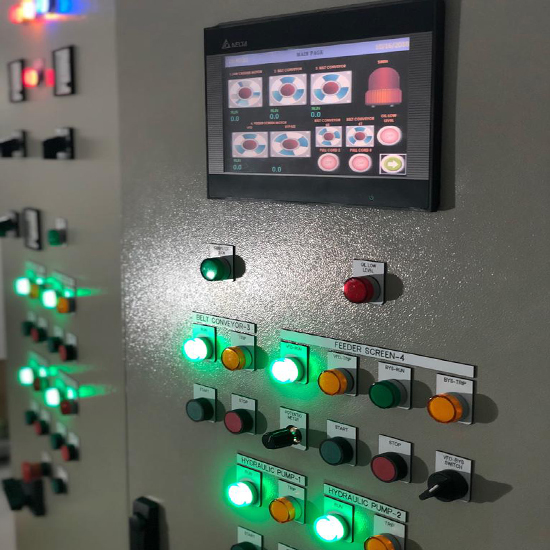

PLC Control Panels.
The following features are included in our PLC Control panel
All panels are with IP-54 type of protection. Form-2, 4 type 2 - 6 (can be customized as per requirement). Rated up to 690VAC, 50/60Hz. Emergency stop provision remote/manually operated. Provision for automatic operation (PLC,BMS/DDC). Protection against overload, short-circuit, earth leakage and fire. Adequate space inside the enclosure for cabling.

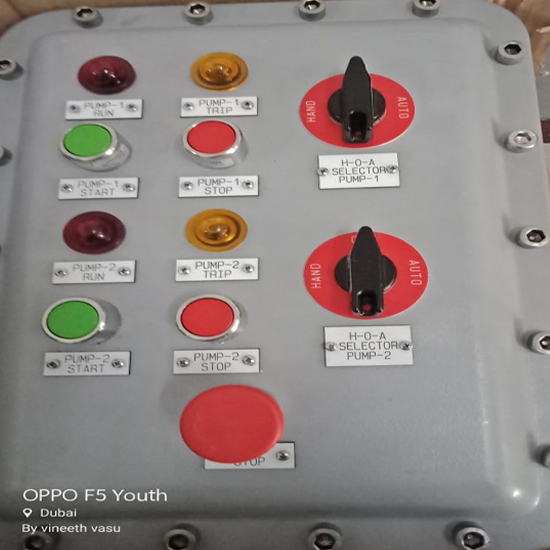

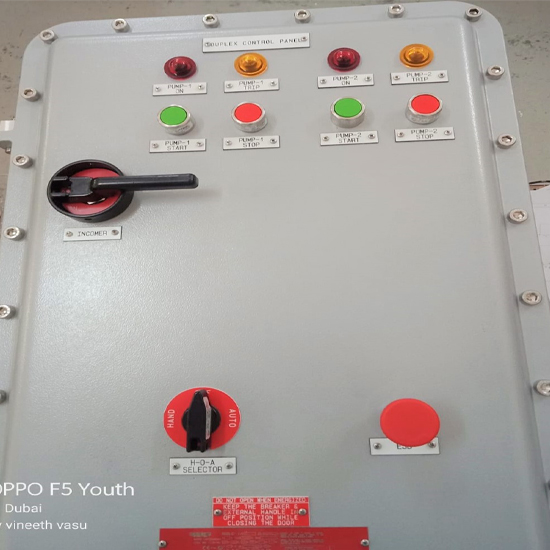

Explosion Proof Panels
The following features are included in our Exd panel
All panels are with IP-66 / 67 type of protection. Temperature ranges of -50° to +60° Certified to Ex d and Ex tb
Feeder Pillars
The following features are included in our feeder pillars panel
Form 2 segregation standard Busbar rating up to 630 A Capable of accepting MCCB's, MCB's and RCBO's. Capable of accepting a wide range of control devices Option to add on cable extension boxes IP Rating up to IP66 Sheet steel or high quality molded fiberglass enclosures Easy replacement of protective control devices Panels in compliance with latest international standards and local regulation

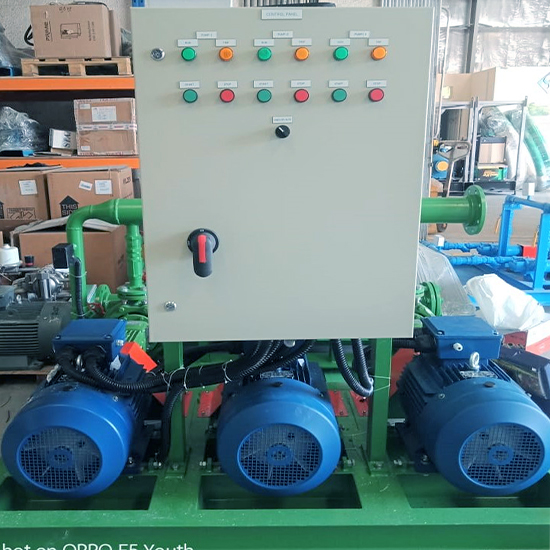

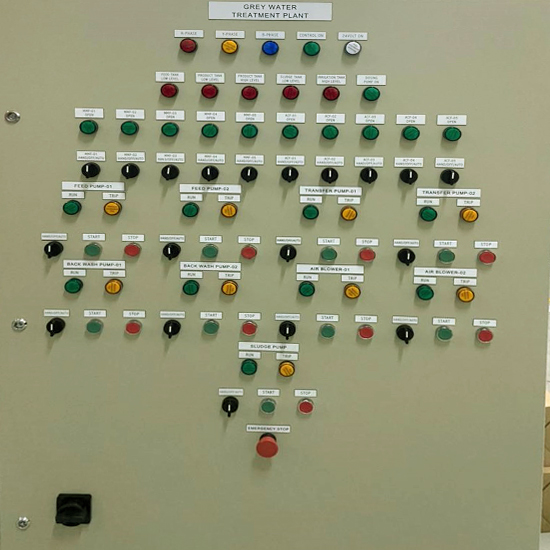

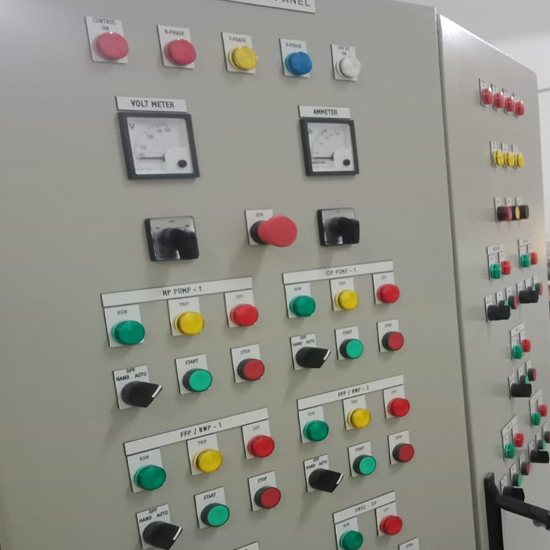

Control Panels for Water Treatment Plants, Transfer, Booster and Sump Pumps
The following features are included in control panel
All panels are with IP-65 type of protection. Form-2 (can be customized as per requirement). Rated up to 690VAC, 50/60Hz. Emergency stop provision remote/manually operated. Provision for automatic operation (PLC,BMS/DDC). Protection against overload, short-circuit, earth leakage and fire. Adequate space inside the enclosure for cabling.

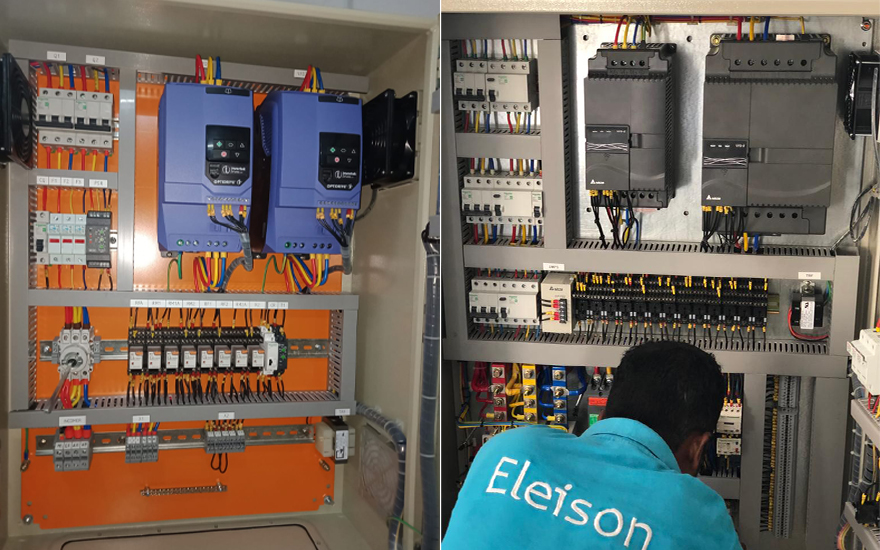

Heating Ventilation and Air Condition Control Panels
The following features are included in our HVAC panel
All panels are with IP-65 type of protection. Form-2 (can be customized as per requirement). Rated up to 690VAC, 50/60Hz. Provision for automatic operation (PLC,BMS/DDC). Adequate metering as per requirement. Protection against overload, short-circuit, earth leakage and fire. Adequate space inside the enclosure for cabling
